Air Fryers | Catalog P539
JD-02D 8.5L Air Fryer
Smart App + Wi-Fi version available
1700 W catalog rating | 0-60 minute catalog timer | 70-200 °C catalog range
Factory direct. Wholesale only. MOQ starts from 1000 PCS.
Compare all 22 App / Wi-Fi-ready modelsAir Fryer Product Catalog, July edition, page 1. Original catalog image; not a current sample or test report.
Choose the JD-02D configuration

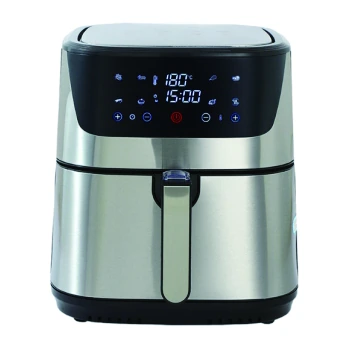

The catalog image shows a digital control panel and solid drawer front. Compared with JD-02C, the printed timer limit increases from 30 to 60 minutes and the lower temperature reference changes from 80 to 70 C. Confirm which settings apply to the connected order version.
The image and specifications below describe the printed catalog configuration, not a verified connected sample. Agree the final control panel, settings and electrical specification for the App / Wi-Fi version before sample approval.
Catalog specifications and packing references
| Reference field | Published value |
|---|---|
| Catalog capacity | 8.5 L |
| Catalog power | 1700 W |
| Catalog voltage variants | 220-240 V~ / 110 V; select one version |
| Catalog timer | 0-60 minutes |
| Catalog temperature | 70-200 °C |
| Catalog material list | ABS + PP + Stainless steel |
| Catalog preset menus | 8 |
| Color-box dimensions | 407 x 355 x 408 mm |
| Master-carton dimensions | 730 x 415 x 425 mm |
| Units per master carton | 2 PCS |
| Catalog gross weight | 7 kg; unit/carton basis to confirm |
| 40HQ loading reference | 1072 PCS; final packing plan to confirm |
Packaging dimensions are not appliance dimensions. Select one electrical version, confirm the weight basis and recheck the final packing plan. Read the shared specification and App approval notes.
Request the JD-02D connected configuration
For JD-02D (P539), specify smart App + Wi-Fi or the standard catalog version. Confirm the actual panel, supported functions and market-specific electrical label before approving the sample.
Prepare JD-02D Connected-Version RFQPlan the JD-02D wholesale order
Evidence boundary: for JD-02D 8.5L Air Fryer (Catalog P539), the published catalog information is not proof of the final order version. App / Wi-Fi availability does not confirm the pictured controls or functions.
These inputs support a product decision; they do not guarantee demand, sell-through, margin or profit.
